Shenzhen Zaiben Tenology Co., Ltd.

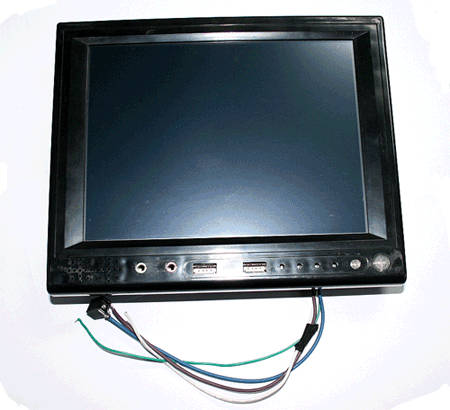

Car PC C20

Car PC C20 Option Standard OEM optional Processor and Core logic CPU:VIA C7-M 772 Esther,1.2GHz Chipset:VIA VX700 Graphics:VIA S3G UniChrome Pro II Memory:DDRII 667MHz 1GB Disk:HDD 30GB CPU: VIA C7-M 1.0-1.8GHz Memory: 1GB-2GB Disk: HDD 30-320GB Modules WiFi:Support 802.11b/g/n(54Mbps) protocol Camera:1.3M Pixels CMOS Camera Bluetooth module 3G module CMMB removableTV module Graphics/picture branded 1.3M/2M Pixels camera IML Process Implementation Color Black Particular parameter Processor and Core logic CPU:VIA C7-M Single Core Superscalar processor Frequency :1.2GHz FSB:400MHz Cache:128KB L1 System Memory DDR2 533MHz/667MHz Support One So-DIMM slot support up to 2GB Storage Support SSD(IDE interface) Supports SD/MMC/MS/MS Pro 4 in 1 card reader Display Size:7” LVDS LCD/LED 16:9 800×480 Pixels Support:1600*1200 Pixels(Video Out) Integration Device and slot Wireless Lan: one Mini PCI-E interface, 2 Antennas, Support 802.11 B/G LAN: 10/100 Ethernet Controller (PCIE) PC Camera: 1.3M/0.3M LAN Port: one RJ45 Port Bluetooth (Option) Audio: HD Audio, Built-In 2 speaker and 1 Microphone Card Reader: SD/MS/MS Pro/MMC One Express card slot Audio Device Input :Built-in electret condenser microphone,with Line out interface Output:HD Audio High-fidelity audio sound card ,SRS stereo sound with headphones output interface I/O Ports USB port:USB2.0×3 Video port:VGA×1 (15-pin) Lan port:RJ-45 10/100M WLAN Power Port: One 19V/3A DC-In Port Express card: One (Co-lay with Mini-PCIE slot for 3G) Card Reader: SD/MS/MS Pro/MMC Audio port: 2 Jack (MIC in & Headphone out) Power System 6 cells Li-lon battery pack,2200mAh, 2-3H AC 110~240V, DC 19V 60W AC Aadapter 40W 2pin, 3pin (Option) Keyboard and Pointing Device Keyboard: None ; Touch screen control fully! Support Multi-national language Integrated Touchpad Left key/ Right Key Weight and Dimension 224.(W)*28(D)*141 (H)mm N/W:1.1Kg (with 3 cells Battery) G/W:1.3Kg (with 6 cells Battery) Carton Meas: 251*174*85(D)mm Packing Model: 10 in 1 Pallet Placement in container (By sea) 20 container=10 Pallets=3200sets 40 container=21 pallets=6720sets LED Indicator Power LED (Green) & Battery Mode in S5 (Orange) Charger (Green) & Battery Status (Orange) HDD ROM Activity: Green Wireless LAN Activity: Green Number Lock: Green Caps Lock: Green Certification CE FCC RoHS CCC Other OS:Linux (Support Windows XP ) Packing List 、Power adapter 、Operation Manual 、Warranty card、Dirver CD Operating temperature:0-40°C,Operating humidity:20%-80% Storage temperature:-20-60°C,Storage humidity:10%-90%
